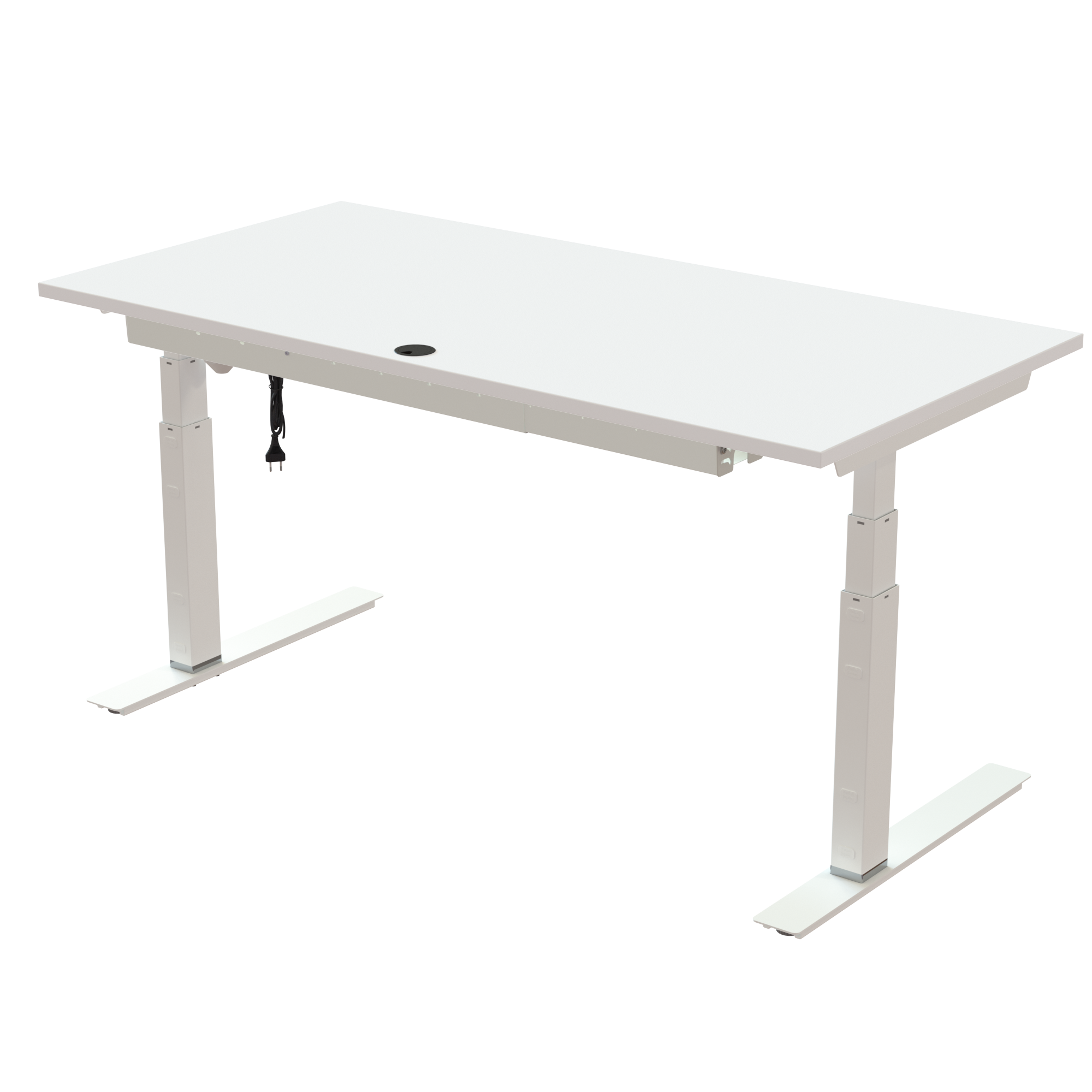

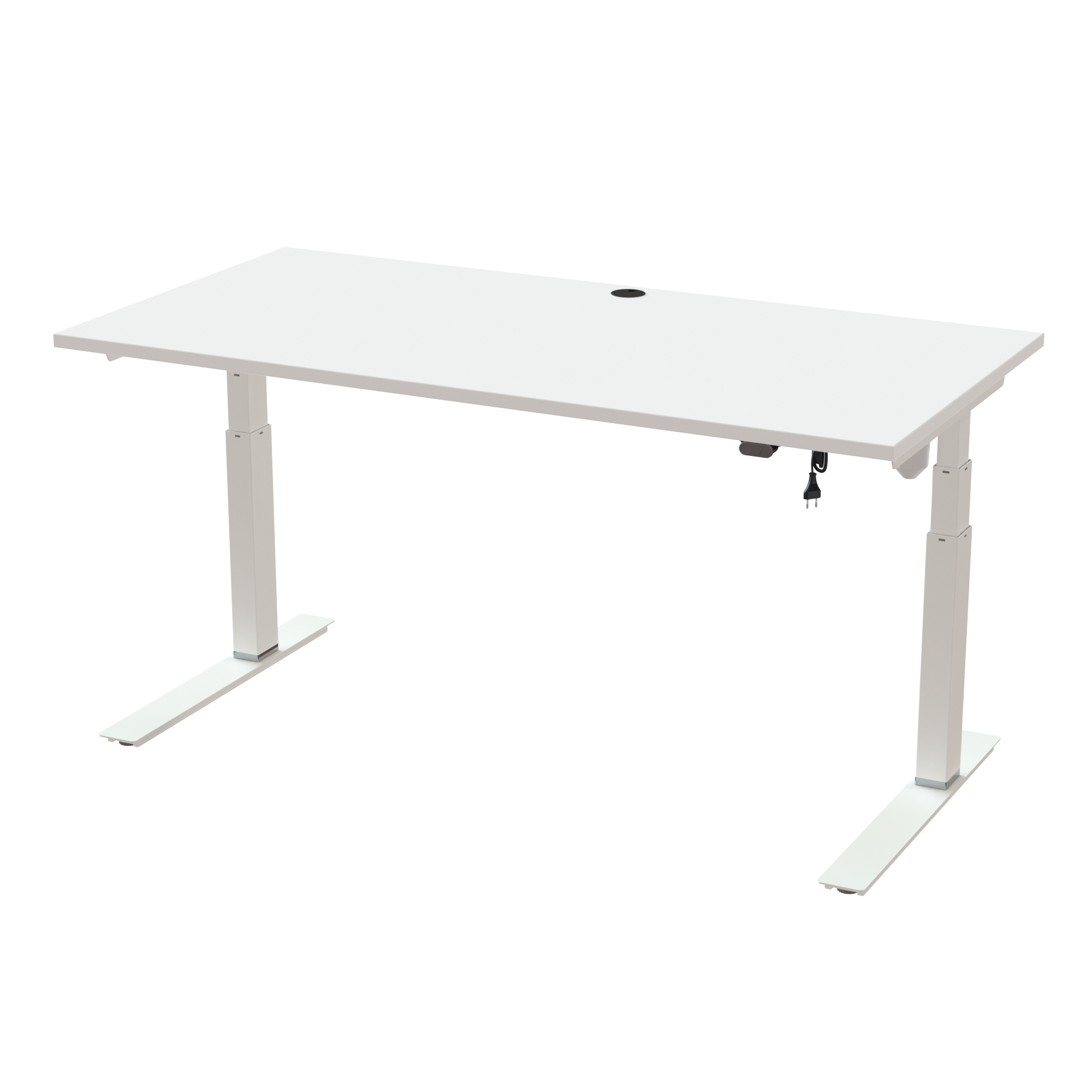

Sit Stand Desk | 160x80 cm | White with white frame

522-35 4W152 160-80S3 WM
522-35 4W152 160-80S3 WM
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
$ 989 incl. GST
Item no.: 522-35 4W152 160-80S3 WM

Experience superior comfort with this sit-to-stand C-frame configuration, engineered to maximise legroom for the 1600 x 800 mm tabletop measurement. The 35 mm chrome ring at the base acts as an elegant design signature that elevates the desk's appearance. It is fully removable to extend the 620-1270 mm height stroke for users down to 150 cm. Includes an RAL 9016 (white) frame colour, an white tabletop colour with an melamine surface type, a solid 100 kg weight limit, and a straightforward 33 min assembly time.

The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation. The desk includes a standard cable tray integrated under the tabletop, utilizing a hinged design that simplifies access by opening smoothly. Situated directly below the cable grommet, it creates a perfect pathway where the grommet acts as the main exit point for all desktop electronics. The cable tray is RAL 9016 (white) frame coloured, matching the desk frame.


Table top specifications

  • Dimensions : 1600 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, a plastic cable entry point is included by default.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation.
  • Motor : ConSet’s efficient and reliable 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
522-35 4W152 160-80S3 WM
Description:
Sit Stand Desk | 160x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075CFeet and brackets C80, white$ 111,-$ 111,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ134460Railset, 1520mm, neutral$ 86,-$ 86,-
1160-80S3 WMSit-Stand Desk Top | 160x80 cm | White$ 184,-$ 184,-

Total
$ 989,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX CW096-166888153,805704142144800
501-XX 4XPOWA221190,705704142133071
SQ134460151533,105704142134467
160-80S3 WM16787423,005704142132951
