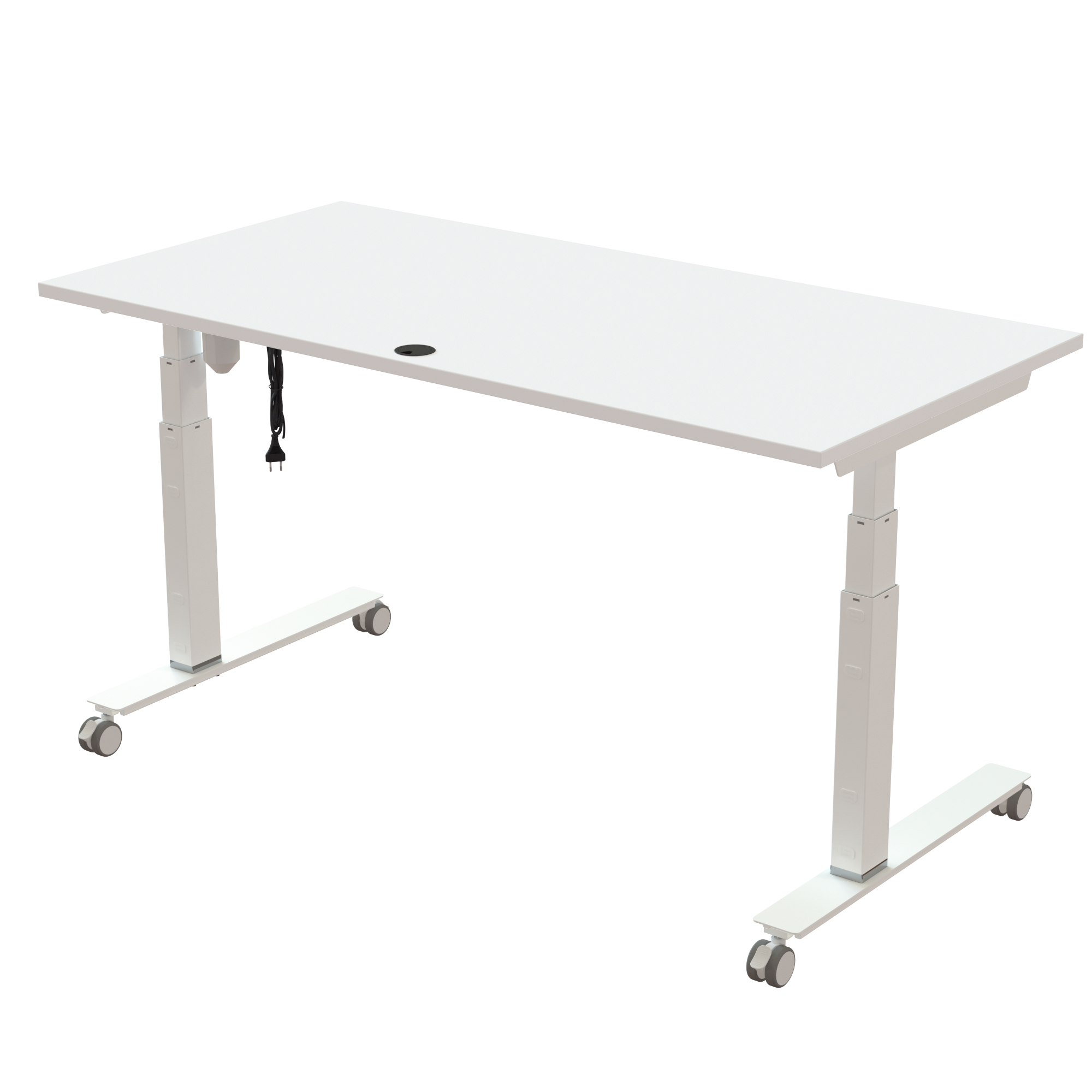

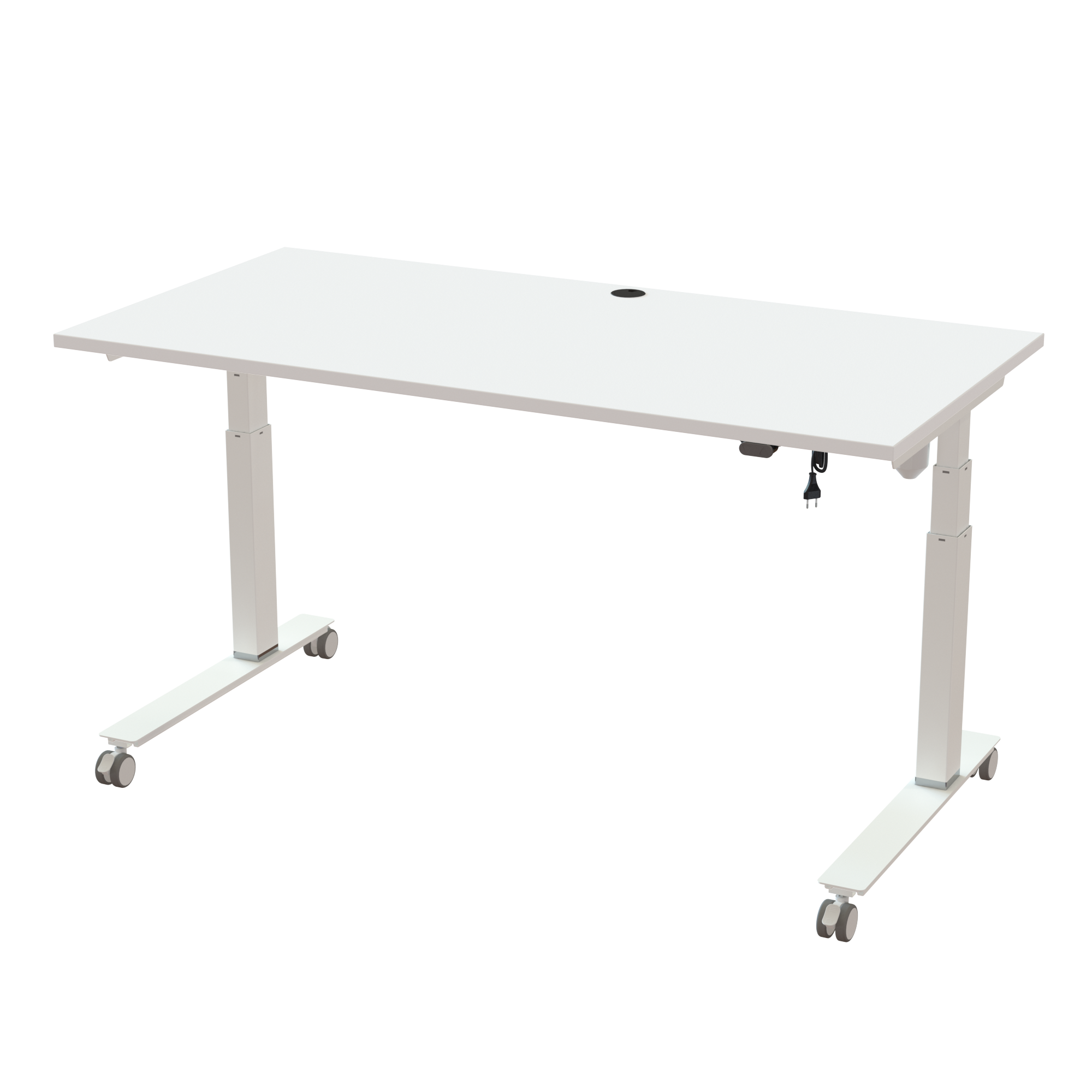

Sit Stand Desk | 160x80 cm | White with white frame

524-35 4W152 160-80S3 WM
524-35 4W152 160-80S3 WM
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
$ 1006 incl. GST
Item no.: 524-35 4W152 160-80S3 WM

With its off-centre column, this dual-purpose sit-stand desk delivers an airy, modern vibe for any 1600 x 800 mm tabletop format. The 35 mm chrome base ring is a key visual feature, serving as a signature design detail. It is also functionally adjustable; remove the ring to refine the 620-1270 mm height stroke for users starting at 150 cm. Built with an RAL 9016 (white) frame colour, an white tabletop colour with an melamine surface material, a reliable 100 kg load capacity, and a fast 27 min assembly time.

The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation. The desk has functional castors mounted onto the desk frame designed for smooth movement, giving you the freedom to roll the workstation around whenever the space requires it.


Table top specifications

  • Dimensions : 1600 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, the cable pass-through feature is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk comes standard with a two-arrow user panel. Its straightforward switch-based design delivers dependable operation and excellent durability. The tactile arrow buttons can be distinguished by touch, allowing the desk to be adjusted without looking at the control panel.
  • Motor : ConSet’s stable 1-motor mechanism with documented reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
524-35 4W152 160-80S3 WM
Description:
Sit Stand Desk | 160x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075CFeet and brackets C80, white$ 111,-$ 111,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ134460Railset, 1520mm, neutral$ 86,-$ 86,-
1160-80S3 WMSit-Stand Desk Top | 160x80 cm | White$ 184,-$ 184,-

Total
$ 1006,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ134460151533,105704142134467
160-80S3 WM16787423,005704142132951
