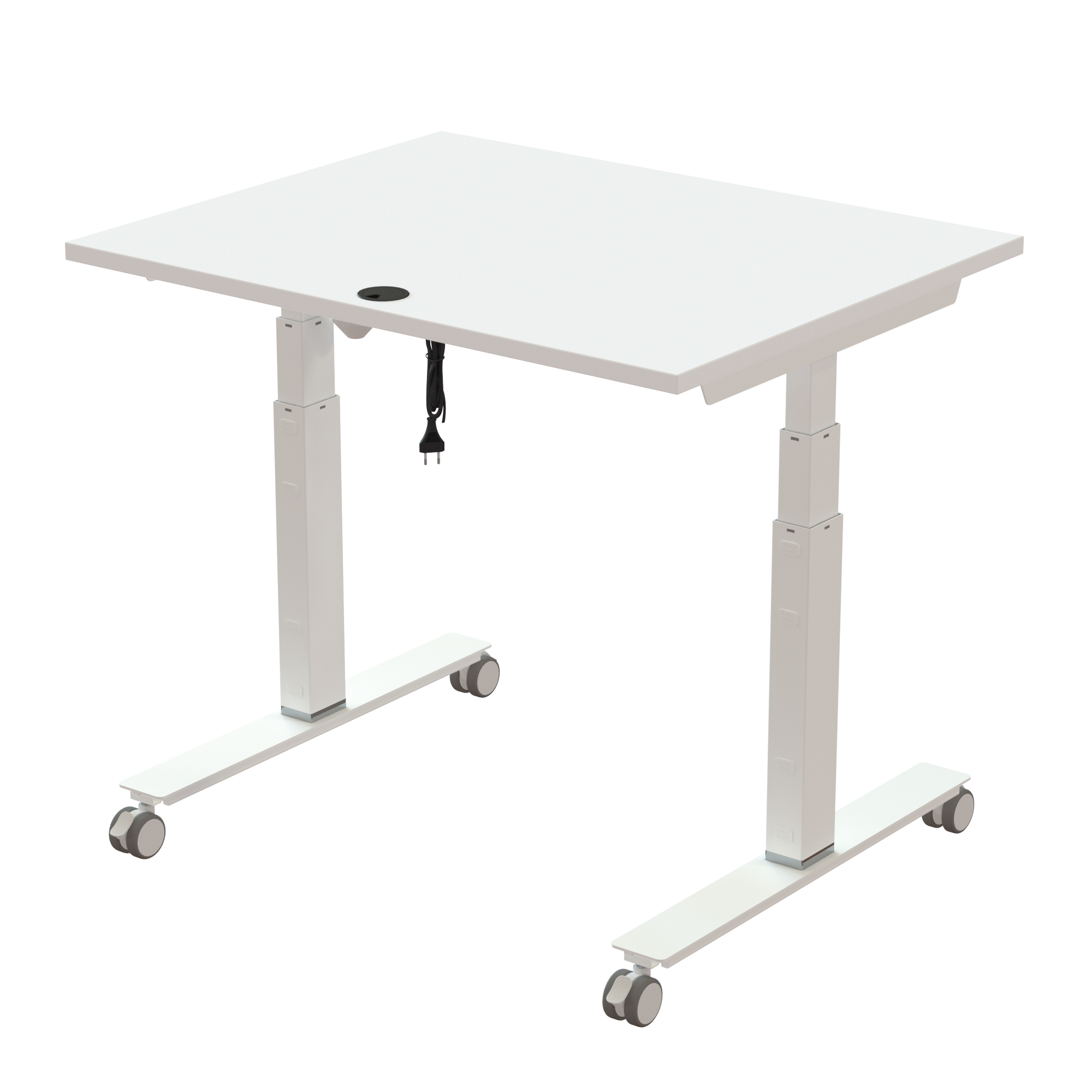

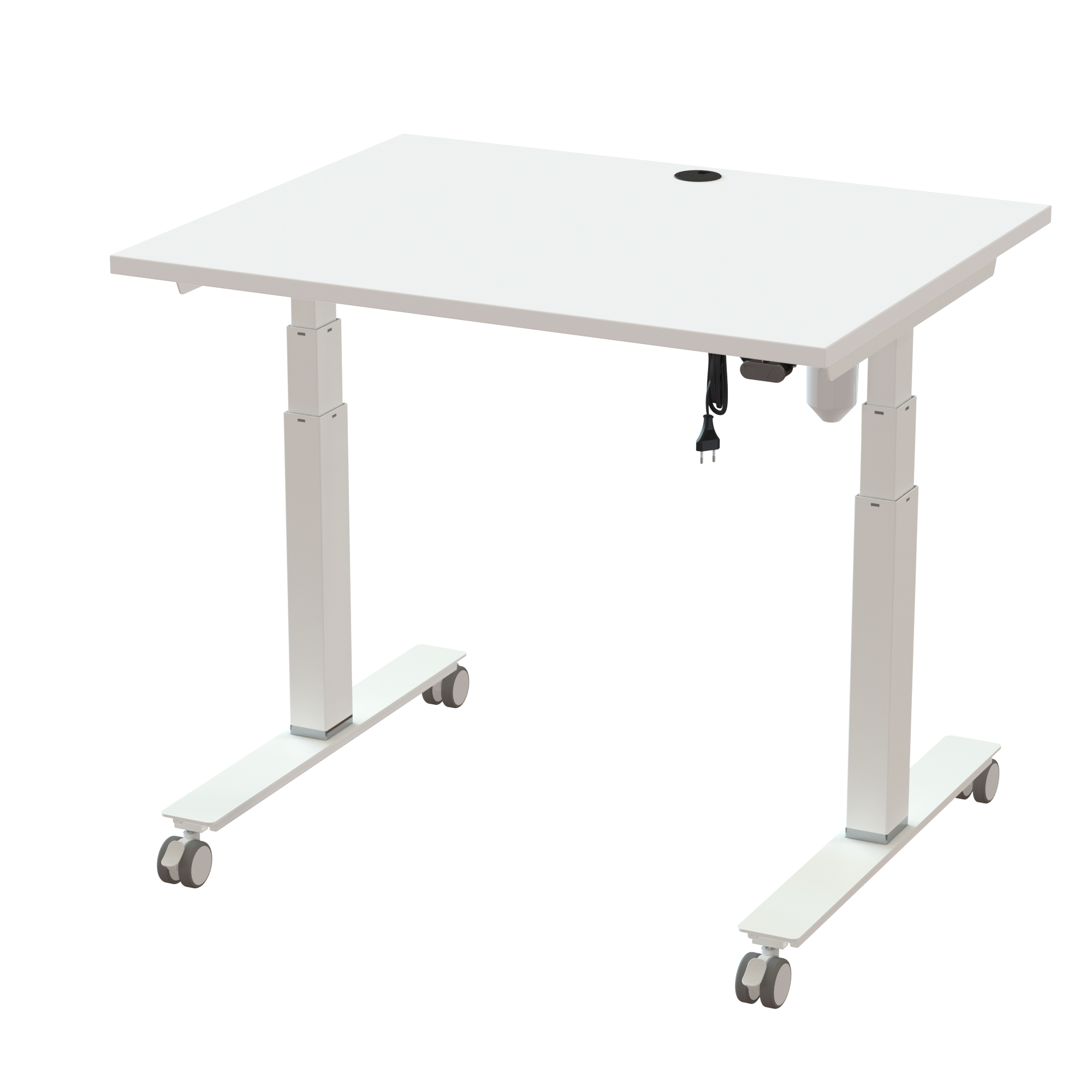

Sit Stand Desk | 100x80 cm | White with white frame

504-35 4W092 100-80S3 WM
504-35 4W092 100-80S3 WM
Sit Stand Desk | 100x80 cm | White with white frame
Sit Stand Desk | 100x80 cm | White with white frame
Sit Stand Desk | 100x80 cm | White with white frame
Sit Stand Desk | 100x80 cm | White with white frame
Sit Stand Desk | 100x80 cm | White with white frame
$ 1013 incl. GST
Item no.: 504-35 4W092 100-80S3 WM

A symmetrical layout and centered lifting column make this adjustable desk a practical choice for a 1000 x 800 mm tabletop. The included 35 mm chrome base ring allows the frame to reach its full 620-1270 mm stroke, while removing it improves accessibility for users from 150 cm tall. The frame provides a 100 kg load capacity, an 23 min assembly time, and comes in white with an melamine surface.

The desk comes with a standard tactile two-arrow user panel. The switch-based control system is designed for reliability, ease of use and long-term durability. The raised arrow buttons can be recognized by feel, allowing effortless adjustment without visual attention. The desk has functional castors mounted onto the desk frame designed for smooth movement, giving you the freedom to roll the workstation around whenever the space requires it.


Table top specifications

  • Dimensions : 1000 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, the plastic grommet for cables is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.
  • Motor : ConSet’s efficient and reliable 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
504-35 4W092 100-80S3 WM
Description:
Sit Stand Desk | 100x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075TFeet and brackets T80, white$ 111,-$ 111,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ141480Railset, 920 mm, neutral$ 86,-$ 86,-
1100-80S3 WMSit-Stand Desk Top | 100x80 cm | White$ 191,-$ 191,-

Total
$ 1013,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075T881169,205704142161814
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ14148091531,895704142141489
100-80S3 WM10787415,005704142132890
