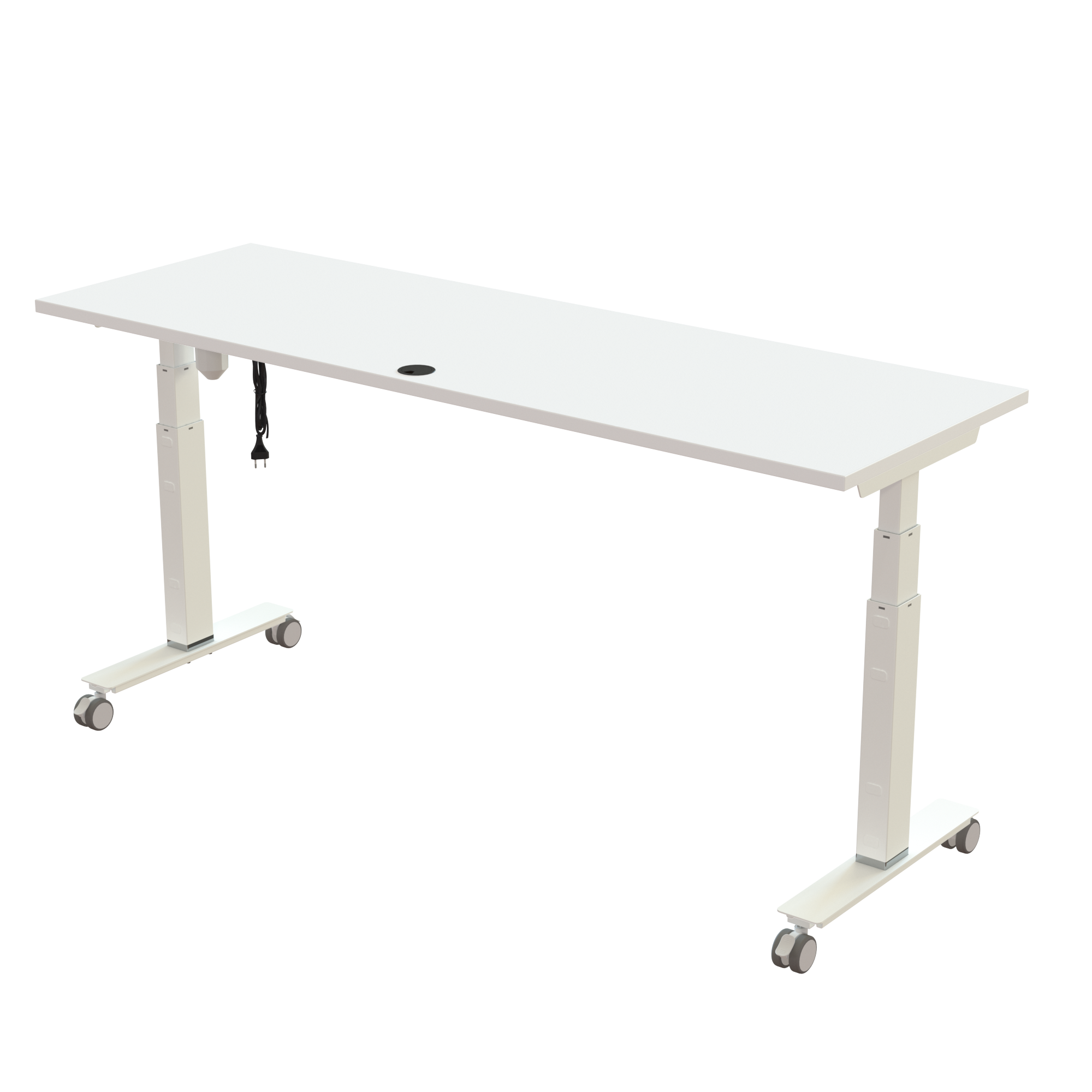

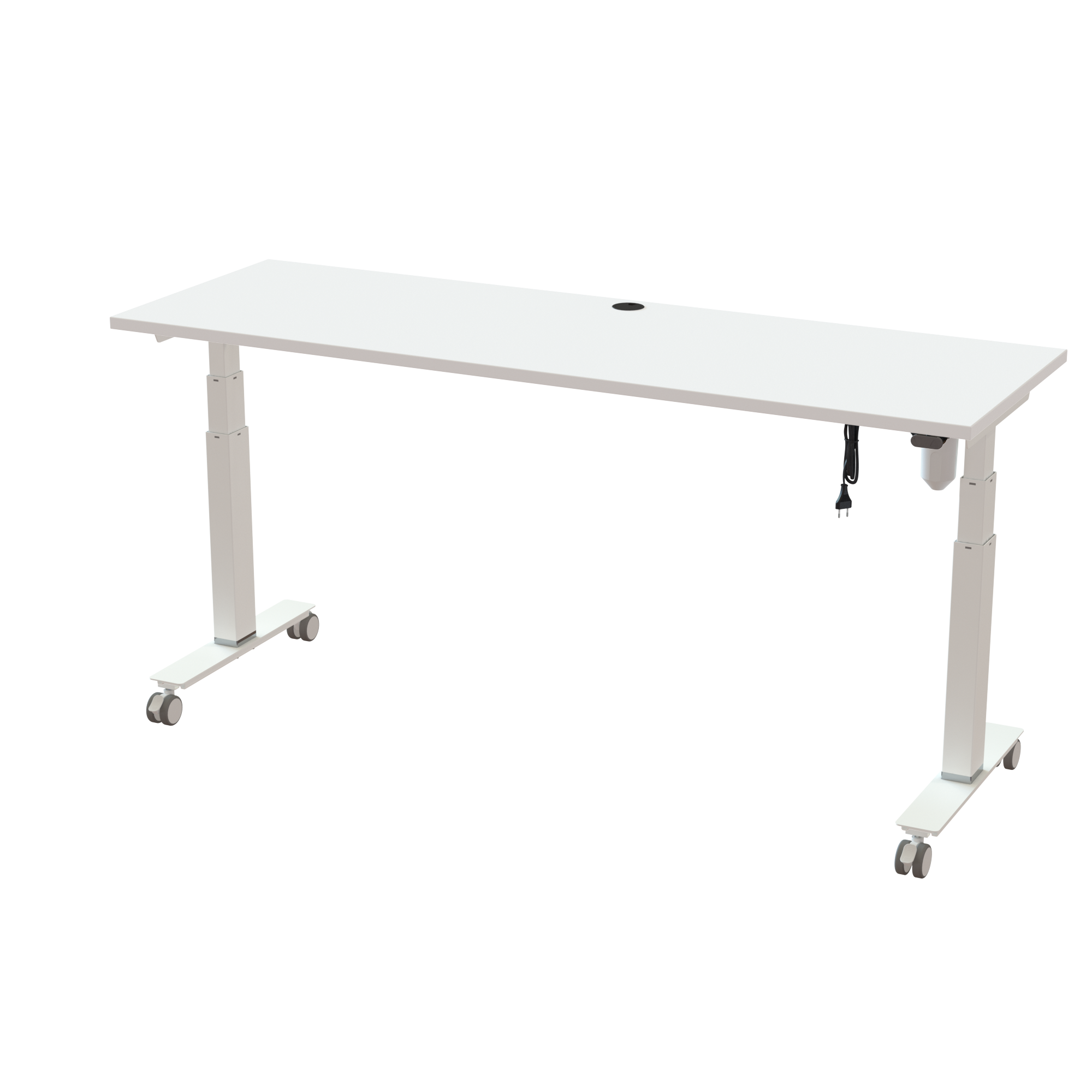

Sit Stand Desk | 180x60 cm | White with white frame

514-35 4W172 180-60S3 WM
514-35 4W172 180-60S3 WM
Sit Stand Desk | 180x60 cm | White with white frame
Sit Stand Desk | 180x60 cm | White with white frame
Sit Stand Desk | 180x60 cm | White with white frame
Sit Stand Desk | 180x60 cm | White with white frame
Sit Stand Desk | 180x60 cm | White with white frame
$ 978 incl. GST
Item no.: 514-35 4W172 180-60S3 WM

The slim T-frame creates a balanced look with narrow 1800 x 600 mm tabletops while maintaining excellent stability. Combined with an RAL 9016 (white) frame and an white melamine tabletop, the desk offers a standard height adjustment range of 620-1270 mm. Simply remove the 35 mm chrome rings to lower the desk by 35 mm for users as short as 150 cm. Supporting loads of up to 100 kg, the desk is quick to assemble in 27 min.

The standard user panel features two tactile arrow buttons for height adjustment. The switch-based design prioritizes durability and dependable performance. Thanks to the tactile controls, the panel can be operated by touch alone. The desk has heavy-duty castors mounted onto the desk frame that allow for quick repositioning, ensuring your workspace remains adaptable to everyday needs.


Table top specifications

  • Dimensions : 1800 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, the tabletop comes with a cable grommet included.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation.
  • Motor : ConSet’s strong and tried-and-tested 1-motor solution
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
514-35 4W172 180-60S3 WM
Description:
Sit Stand Desk | 180x60 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055TFeet and brackets T60, white$ 95,-$ 95,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-60S3 WMSit-Stand Desk Top | 180x60 cm | White$ 172,-$ 172,-

Total
$ 978,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055T681066,705704142161975
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-60S3 WM18767423,005704142151099
