Sit Stand Desk | 120x80 cm | White with white frame

504-35 4W112 120-80S3 WM
504-35 4W112 120-80S3 WM
Sit Stand Desk | 120x80 cm | White with white frame
Sit Stand Desk | 120x80 cm | White with white frame
Sit Stand Desk | 120x80 cm | White with white frame
Sit Stand Desk | 120x80 cm | White with white frame
Sit Stand Desk | 120x80 cm | White with white frame
$ 1013 incl. GST
Item no.: 504-35 4W112 120-80S3 WM

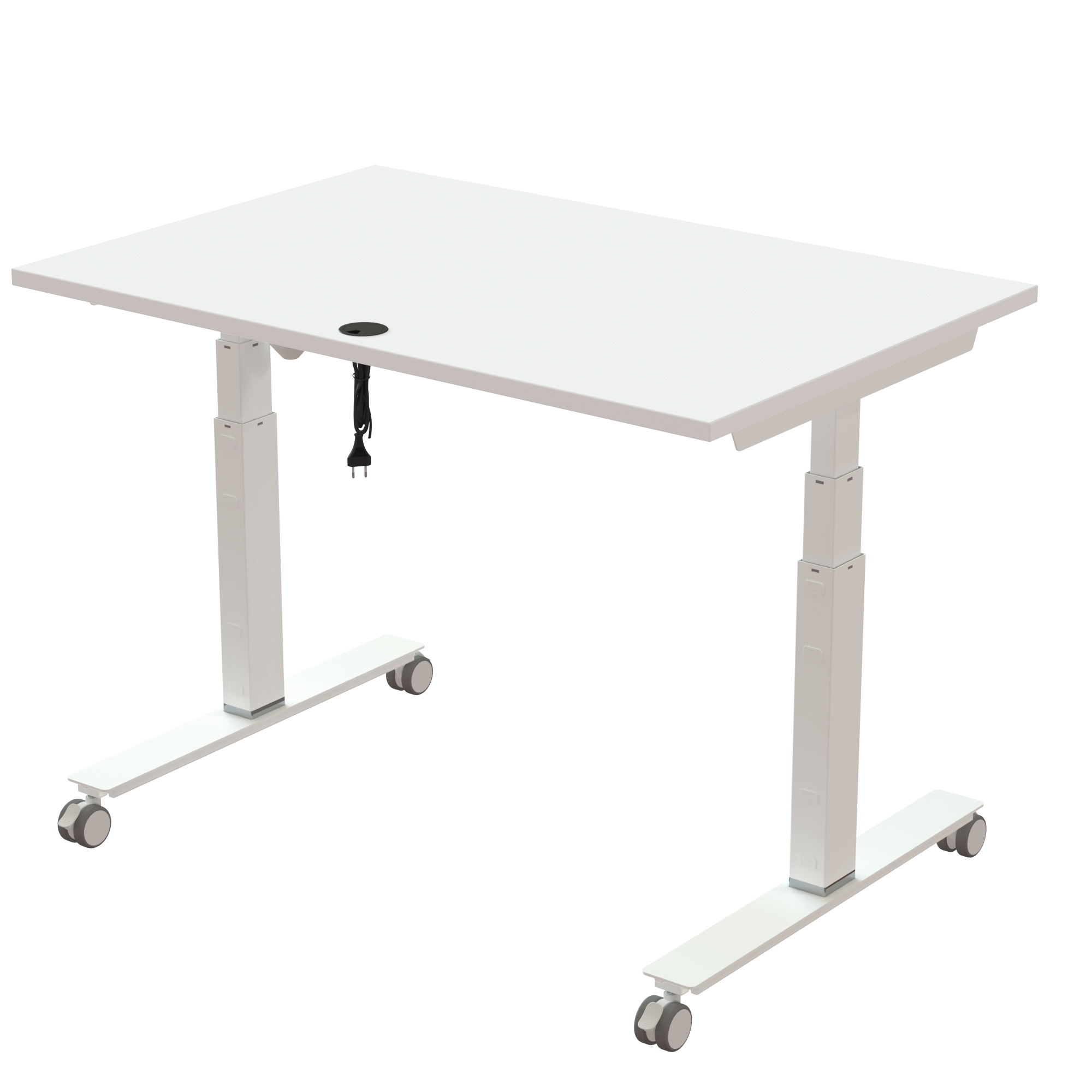

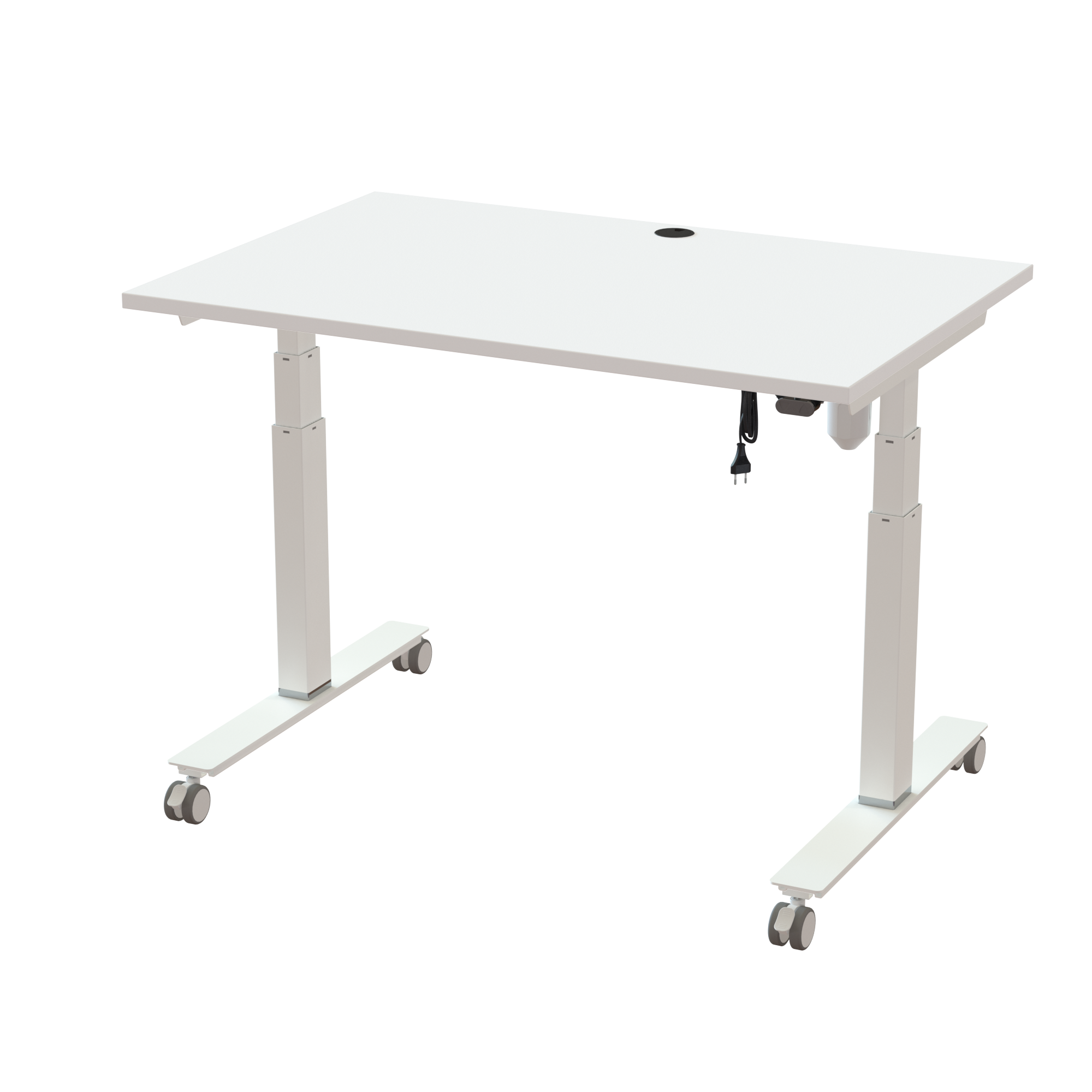

This electric desk is built with centered feet and top arms to create a simple, symmetrical look while maximising space beneath a 1200 x 800 mm tabletop. Fit the 35 mm chrome base ring for the full 620-1270 mm stroke, or remove it to lower the minimum height for users from 150 cm. It offers a 100 kg load capacity, an 25 min assembly time, and is available in white with an melamine surface.

The desk comes standard with a two-arrow user panel. Its straightforward switch-based design delivers dependable operation and excellent durability. The tactile arrow buttons can be distinguished by touch, allowing the desk to be adjusted without looking at the control panel. The desk comes with sturdy castors mounted onto the desk frame that make relocating the workstation completely hassle-free, perfect for creating collaborative spaces on the fly.


Table top specifications

  • Dimensions : 1200 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, the cable pass-through feature is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The standard user panel features two tactile arrow buttons for height adjustment. The switch-based design prioritizes durability and dependable performance. Thanks to the tactile controls, the panel can be operated by touch alone.
  • Motor : ConSet’s tested and reliably operating 1-motor solution
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
504-35 4W112 120-80S3 WM
Description:
Sit Stand Desk | 120x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075TFeet and brackets T80, white$ 111,-$ 111,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ137690Railset, 1120 mm, neutral$ 86,-$ 86,-
1120-80S3 WMSit-Stand Desk Top | 120x80 cm | White$ 191,-$ 191,-

Total
$ 1013,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075T881169,205704142161814
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ137690111532,305704142137697
120-80S3 WM12787417,005704142132920
