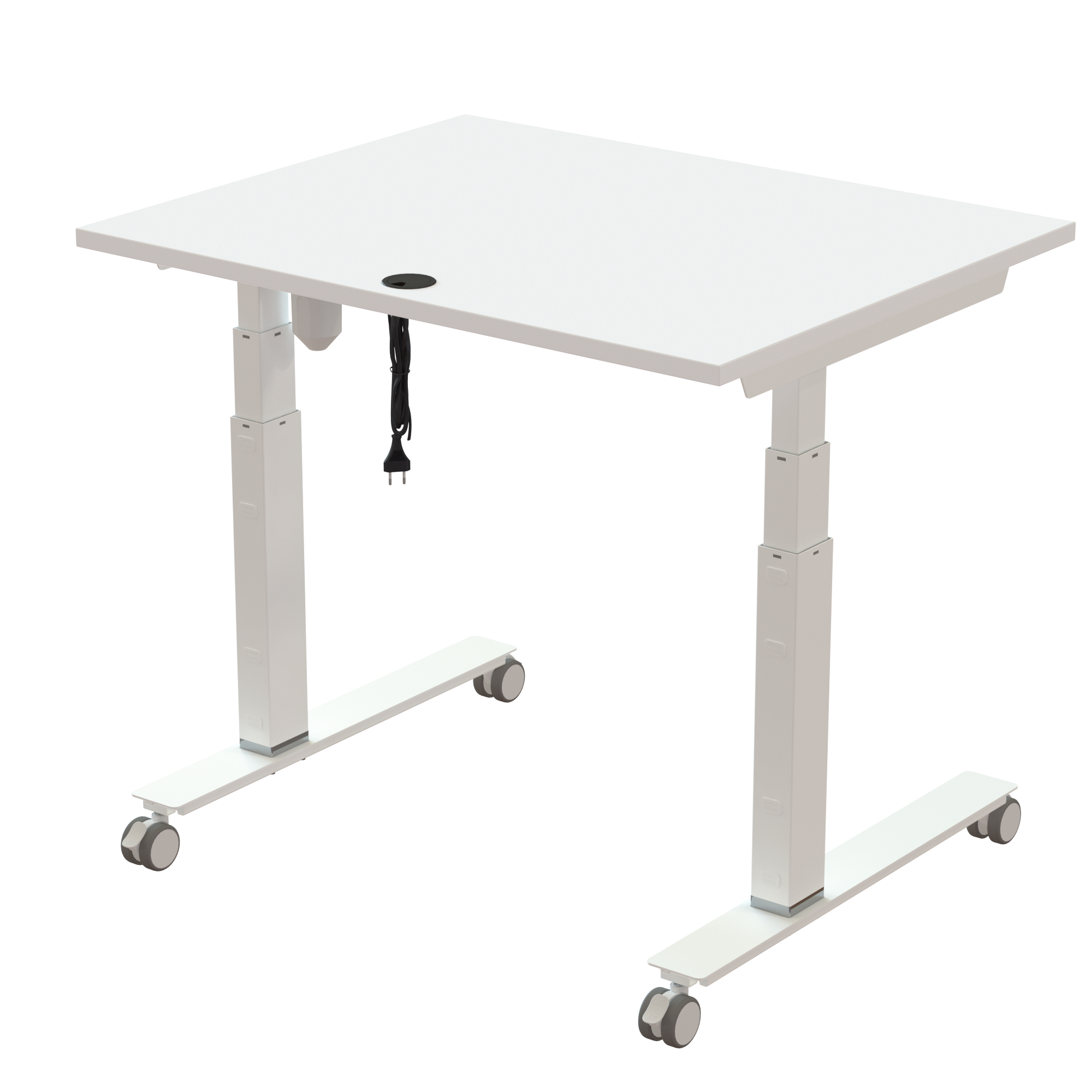

Sit Stand Desk | 100x80 cm | White with white frame

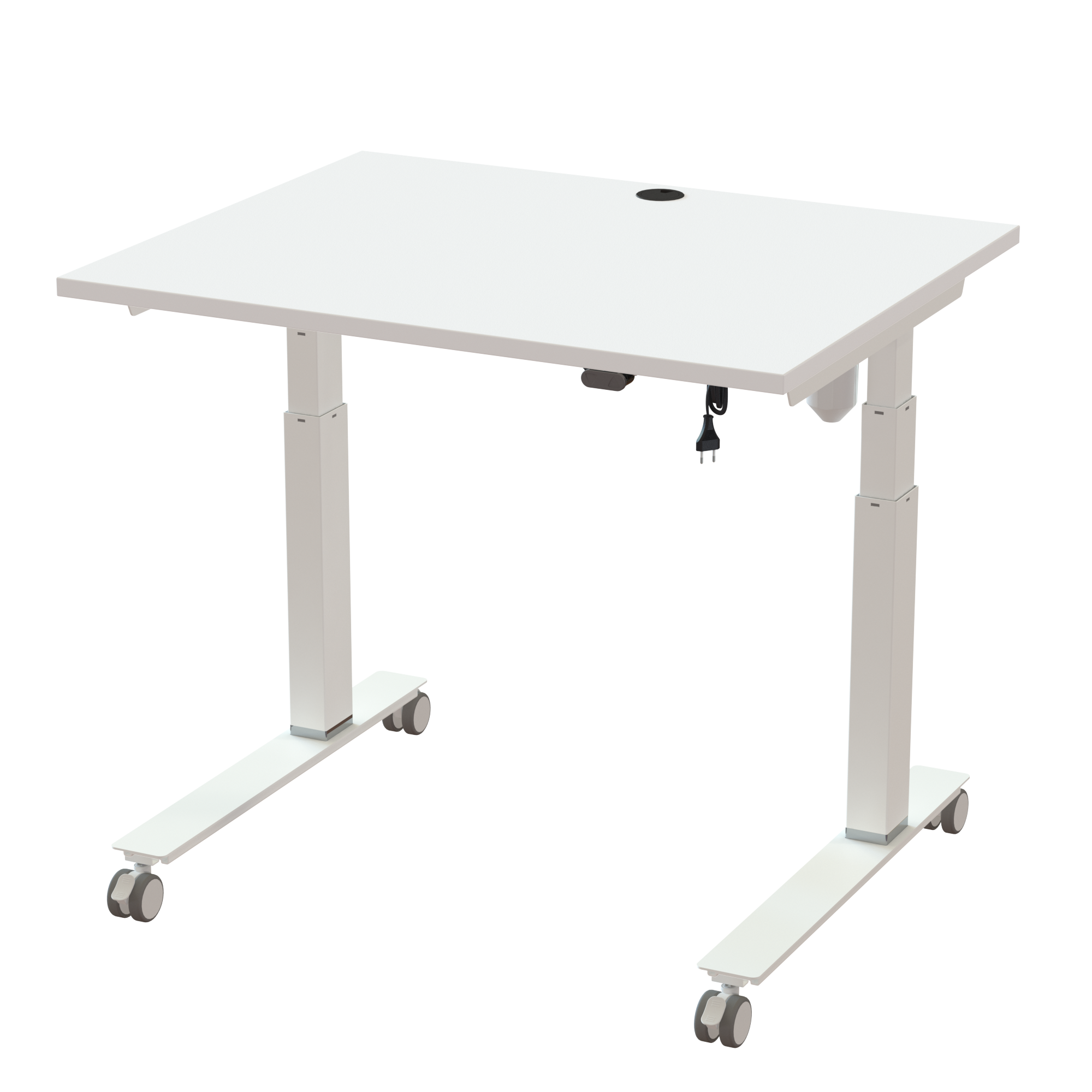

524-35 4W092 100-80S3 WM
524-35 4W092 100-80S3 WM
Sit Stand Desk | 100x80 cm | White with white frame
Sit Stand Desk | 100x80 cm | White with white frame
Sit Stand Desk | 100x80 cm | White with white frame
Sit Stand Desk | 100x80 cm | White with white frame
Sit Stand Desk | 100x80 cm | White with white frame
$ 1013 incl. GST
Item no.: 524-35 4W092 100-80S3 WM

With its off-centre column, this dual-purpose sit-stand desk delivers an airy, modern vibe for any 1000 x 800 mm tabletop format. The 35 mm chrome base ring is a key visual feature, serving as a signature design detail. It is also functionally adjustable; remove the ring to refine the 620-1270 mm height stroke for users starting at 150 cm. Built with an RAL 9016 (white) frame colour, an white tabletop colour with an melamine surface material, a reliable 100 kg load capacity, and a fast 23 min assembly time.

The standard user panel features two tactile arrow buttons for height adjustment. The switch-based design prioritizes durability and dependable performance. Thanks to the tactile controls, the panel can be operated by touch alone. The desk comes with smooth-gliding castors mounted onto the desk frame that provide effortless mobility, allowing you to move the workspace to wherever it is needed most.


Table top specifications

  • Dimensions : 1000 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, a cable management grommet is included as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.
  • Motor : ConSet’s reliable and thoroughly tested 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
524-35 4W092 100-80S3 WM
Description:
Sit Stand Desk | 100x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075CFeet and brackets C80, white$ 111,-$ 111,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ141480Railset, 920 mm, neutral$ 86,-$ 86,-
1100-80S3 WMSit-Stand Desk Top | 100x80 cm | White$ 191,-$ 191,-

Total
$ 1013,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ14148091531,895704142141489
100-80S3 WM10787415,005704142132890
