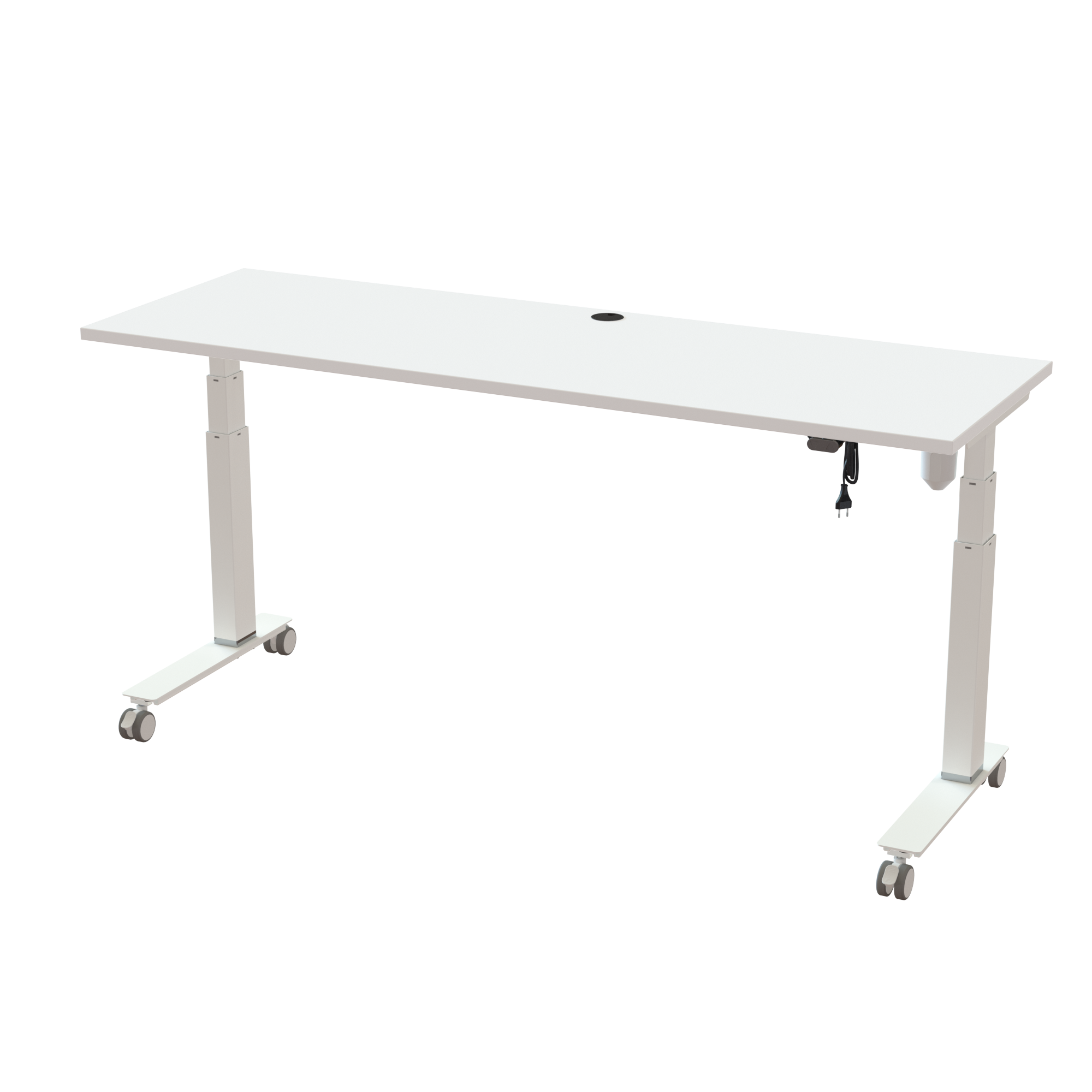

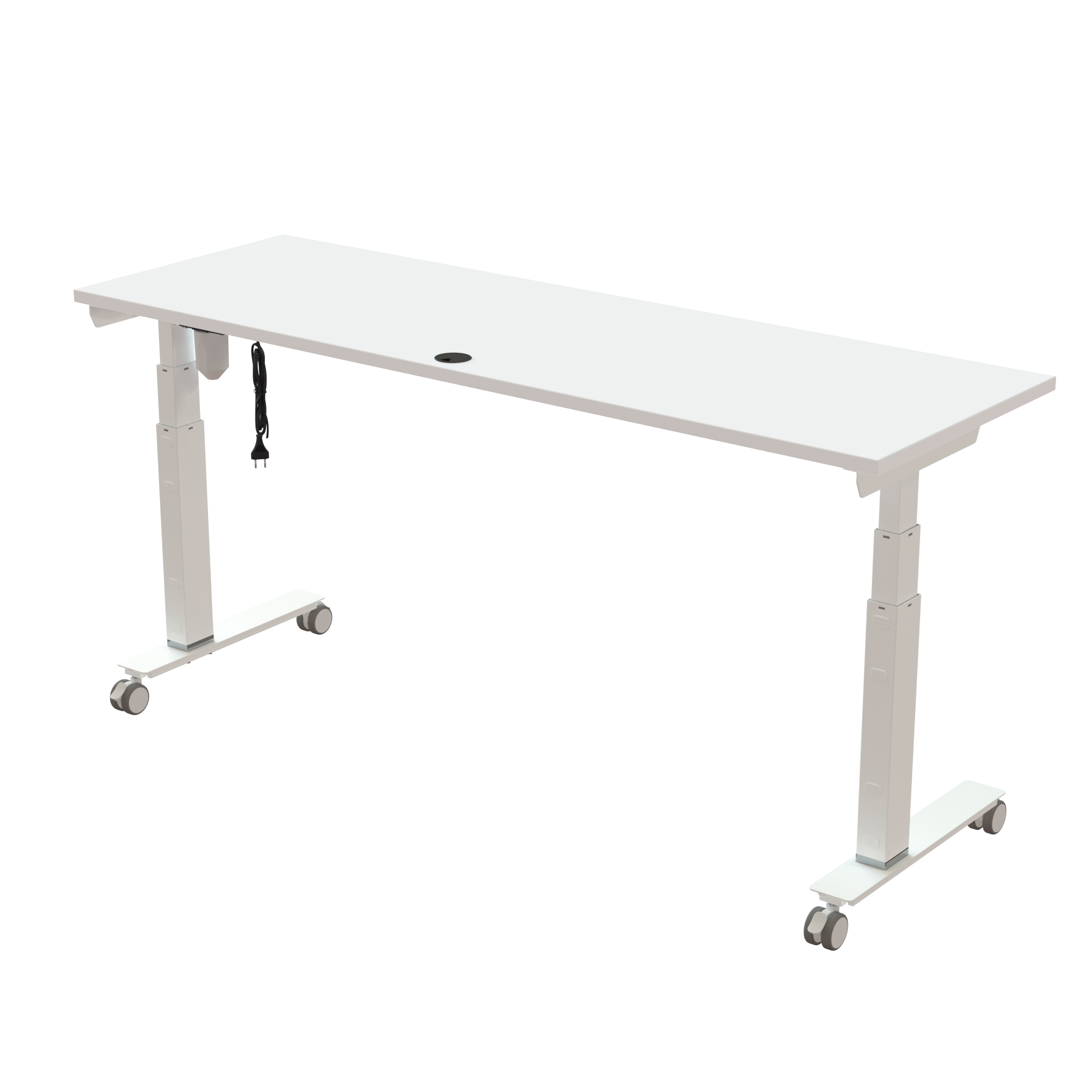

Sit Stand Desk | 180x60 cm | White with white frame

534-35 4W172 180-60S3 WM
534-35 4W172 180-60S3 WM
Sit Stand Desk | 180x60 cm | White with white frame
Sit Stand Desk | 180x60 cm | White with white frame
Sit Stand Desk | 180x60 cm | White with white frame
Sit Stand Desk | 180x60 cm | White with white frame
Sit Stand Desk | 180x60 cm | White with white frame
$ 978 incl. GST
Item no.: 534-35 4W172 180-60S3 WM

Perfectly suited for a reduced tabletop depth, this space-saving C-frame sit-stand desk maximises legroom despite the narrower foot footprint. The off-centre column ensures an open, airy feel underneath, with a foot length matched directly to the 1800 x 600 mm tabletop dimensions. A sleek 35 mm chrome ring at the base provides a high-end design detail, which is also detachable to extend the 620-1270 mm height adjustment stroke for users down to 150 cm. Features an RAL 9016 (white) frame colour, an white tabletop colour with an melamine surface material, an 100 kg load capacity, and an 27 min assembly time.

The desk comes standard with a two-arrow user panel. Its straightforward switch-based design delivers dependable operation and excellent durability. The tactile arrow buttons can be distinguished by touch, allowing the desk to be adjusted without looking at the control panel. The desk comes with castors mounted onto the desk frame for maximum flexibility, making it simple to slide the workstation out of the way or into a new position.


Table top specifications

  • Dimensions : 1800 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, it features a standard plastic grommet.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: Included as standard is a two-arrow control panel with a proven switch-based design. Its uncomplicated construction contributes to long-term reliability. The tactile arrow buttons provide clear feedback and can be operated without looking.
  • Motor : ConSet’s reliable and thoroughly tested 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
534-35 4W172 180-60S3 WM
Description:
Sit Stand Desk | 180x60 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055CFeet and brackets C60, white$ 95,-$ 95,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-60S3 WMSit-Stand Desk Top | 180x60 cm | White$ 172,-$ 172,-

Total
$ 978,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055C681066,705704142162194
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-60S3 WM18767423,005704142151099
