Sit Stand Desk | 80x80 cm | Beech with white frame

504-35 4W072 080-80S3 BM
504-35 4W072 080-80S3 BM
Sit Stand Desk | 80x80 cm | Beech with white frame
Sit Stand Desk | 80x80 cm | Beech with white frame
Sit Stand Desk | 80x80 cm | Beech with white frame
Sit Stand Desk | 80x80 cm | Beech with white frame
Sit Stand Desk | 80x80 cm | Beech with white frame
$ 981 incl. GST
Item no.: 504-35 4W072 080-80S3 BM

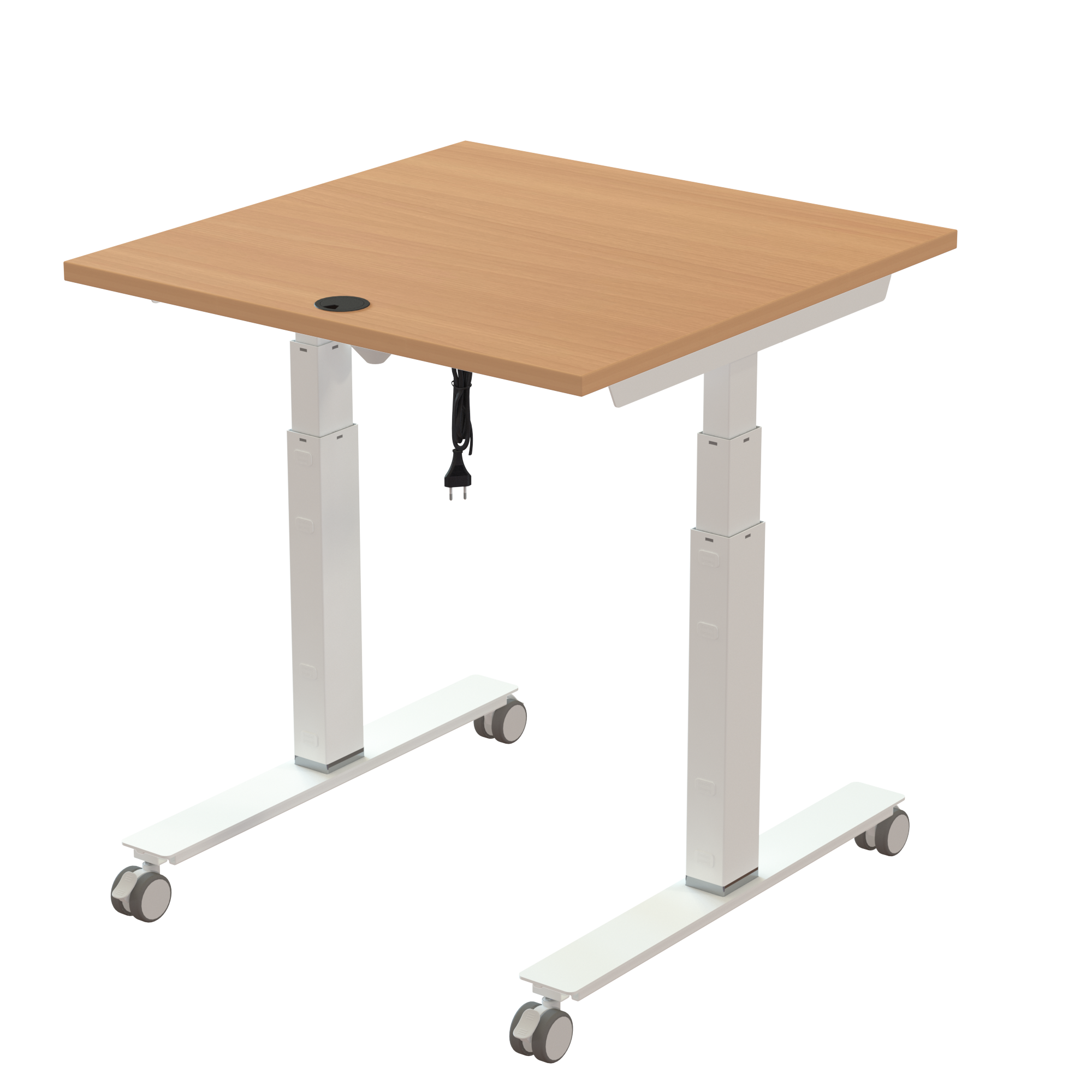

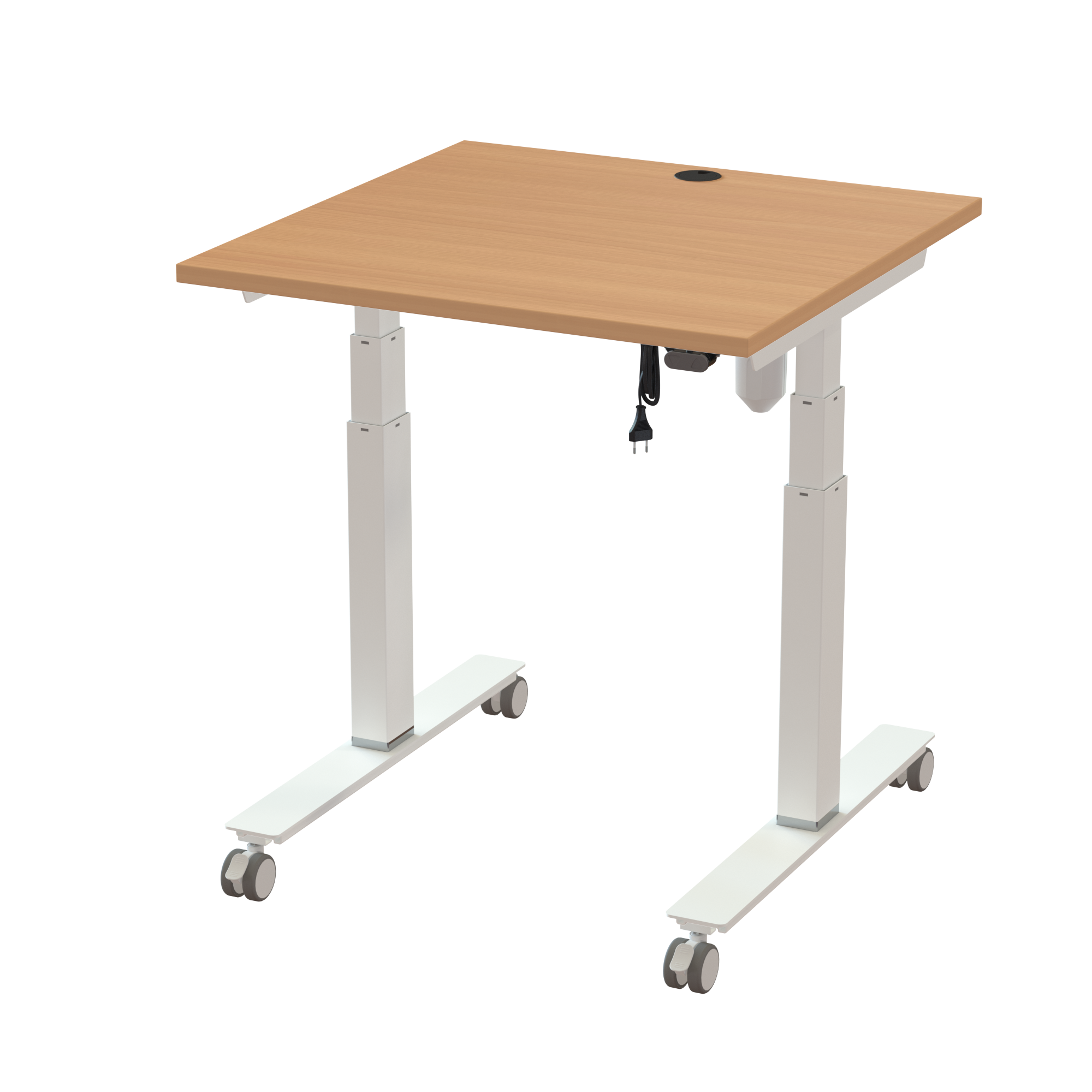

Designed for a 800 x 800 mm tabletop, this height-adjustable desk combines a centered construction with generous legroom and everyday practicality. The 35 mm chrome base ring provides the full 620-1270 mm stroke and can be removed when a lower minimum height is required. It features a 100 kg load capacity, an 22 min assembly time, and is finished in beech with an melamine surface.

The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down. The desk has functional castors mounted onto the desk frame designed for smooth movement, giving you the freedom to roll the workstation around whenever the space requires it.


Table top specifications

  • Dimensions : 800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, a cable management grommet is included as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.
  • Motor : ConSet’s stable 1-motor mechanism with demonstrated reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
504-35 4W072 080-80S3 BM
Description:
Sit Stand Desk | 80x80 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075TFeet and brackets T80, white$ 111,-$ 111,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ143950Railset, 720 mm, neutral$ 86,-$ 86,-
1080-80S3 BMSit-Stand Desk Top | 080x80 cm | Beech$ 159,-$ 159,-

Total
$ 981,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075T881169,205704142161814
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ14395071531,475704142143957
080-80S3 BM878749,005704142135174
