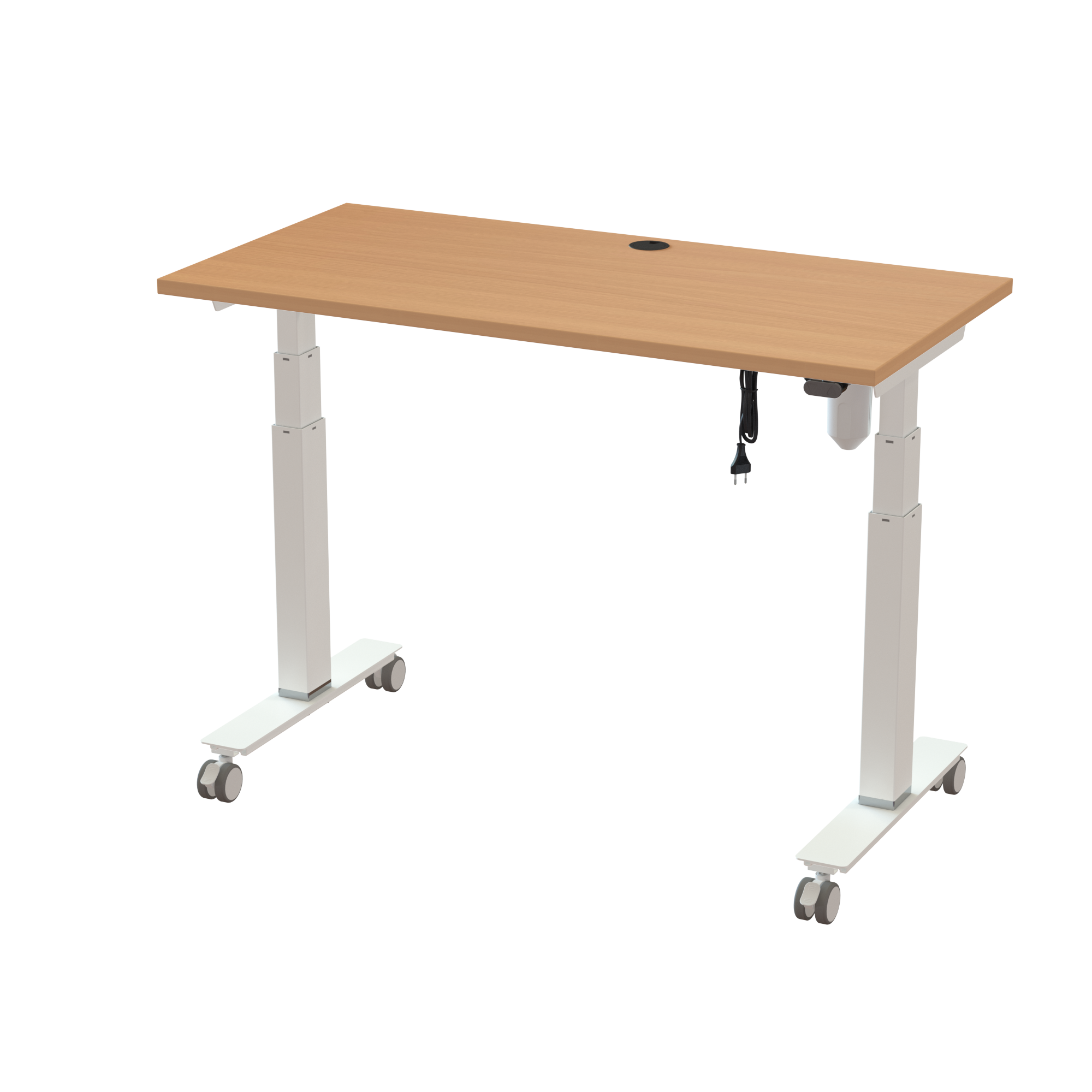

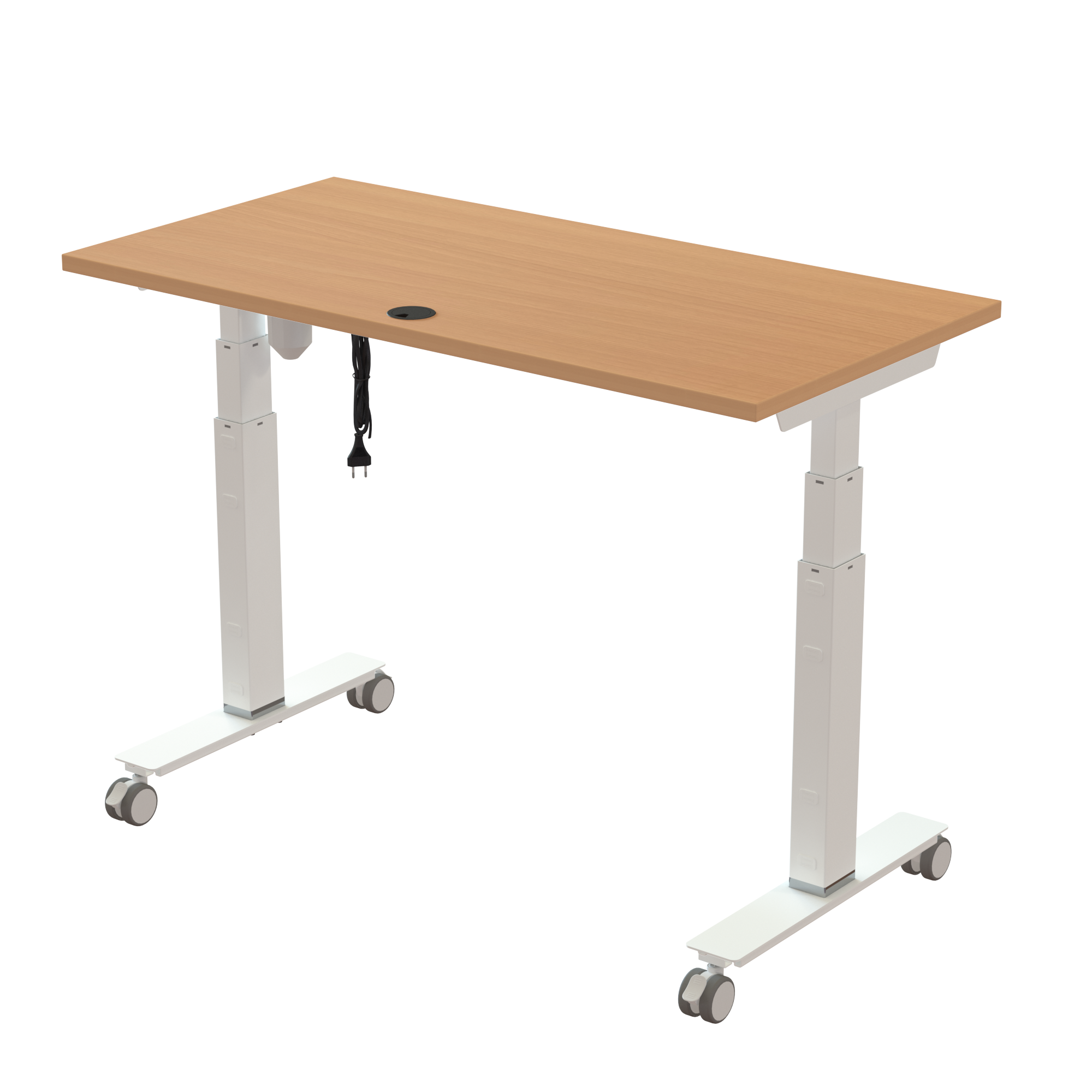

Sit Stand Desk | 120x60 cm | Beech with white frame

514-35 4W112 120-60S3 BM
514-35 4W112 120-60S3 BM
Sit Stand Desk | 120x60 cm | Beech with white frame
Sit Stand Desk | 120x60 cm | Beech with white frame
Sit Stand Desk | 120x60 cm | Beech with white frame
Sit Stand Desk | 120x60 cm | Beech with white frame
Sit Stand Desk | 120x60 cm | Beech with white frame
$ 948 incl. GST
Item no.: 514-35 4W112 120-60S3 BM

A RAL 9016 (white) frame, a beech melamine tabletop and a slim T-frame come together in this elegant height adjustable desk, designed specifically for narrow 1200 x 600 mm tabletops. Standard height adjustment is 620-1270 mm. Each column is finished with a removable 35 mm chrome ring that lowers the desk by 35 mm when removed. Designed to handle up to 100 kg, the desk requires only 24 min for assembly.

The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down. The desk includes easy-roll castors mounted onto the desk frame, providing a straightforward and mobile setup that enhances any modern office environment.


Table top specifications

  • Dimensions : 1200 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, cable access grommet is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation.
  • Motor : ConSet’s powerful and dependable 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
514-35 4W112 120-60S3 BM
Description:
Sit Stand Desk | 120x60 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055TFeet and brackets T60, white$ 95,-$ 95,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ137690Railset, 1120 mm, neutral$ 86,-$ 86,-
1120-60S3 BMSit-Stand Desk Top | 120x60 cm | Beech$ 142,-$ 142,-

Total
$ 948,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055T681066,705704142161975
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ137690111532,305704142137697
120-60S3 BM12767413,005704142132852
